DESIGNER LAMINATED DOOR

For your convenience Kridha offers highly durable laminated Doors. These doors are water-proof and covered with high Pressure Laminate (HPL) sheets which give them their distinctively beautiful finish. Carved from the best raw materials available and cut by latest cutting-edge machines, these all-weather doors are capable of withstanding the harshest of climatic conditions, without even a scratch to their exquisiteness. We use unique technology in which special resins impart extra strength to its laminates, making them highly resistant to scratch and abrasion.

TESTS IS 2202 (PART-1) REQUIREMENTS OBSERVATION OBSERVATION
Workmanship and Finish Satisfactory Satisfactory Satisfactory
Dimensions & Squareness test Length & width Within a limit 5mm Length = ±5 mm
Width = ±5 mm 		Length = ±4 mm
Width = ±4 mm
Thickness Within limit of 1mm(±). variation in thickness Within 0.8mm Thickness= ±0.8mm Thickness= ±0.5 mm
door shutter shall not deviate by more then 1mm Within Limit Within Limit
General flatness test Twist, cupping, warping not more than 6mm Within Limit Within Limit
Local planeness test Depth of deviation not greater than 0.5mm Within Limit Within Limit
Impact indentation not more than 0.2mm 0.2 mm 0.2 mm
Flexure test Residual deflection should not more then 1/10 of maximum deflection. Within Limit Within Limit
Deflection at max load should not more than 1/30 of length and 1/15 of width. Within limit Within limit
Edge loading test Deflection of the edge at the maximum load should not more than 5.0mm 3.24 mm 4.50 mm
Enquiry Now
Download Catalogue

AVAILABLE SIZE: 7X3.25 Feet

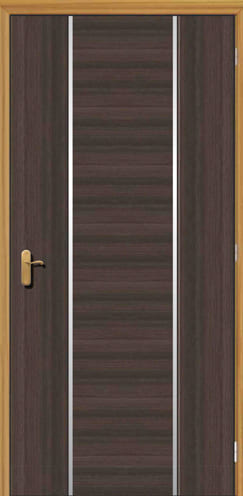

desgn-dr-8

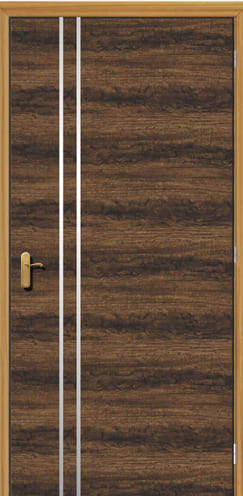

desgn-dr-7

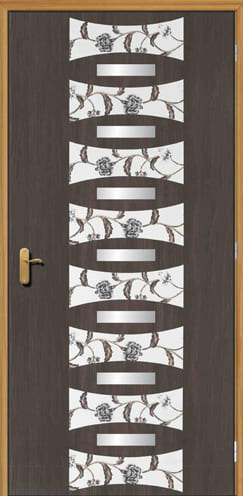

desgn-dr-6

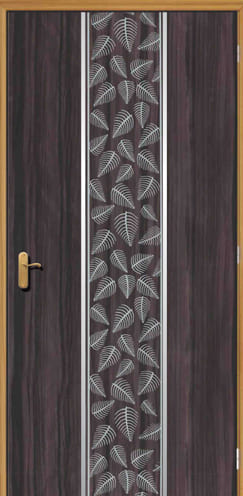

desgn-dr-5

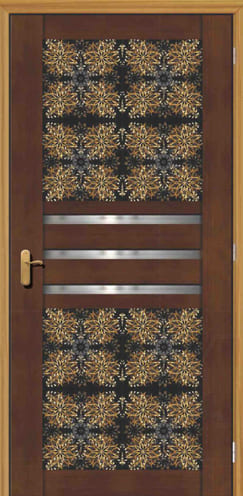

desgn-dr-4

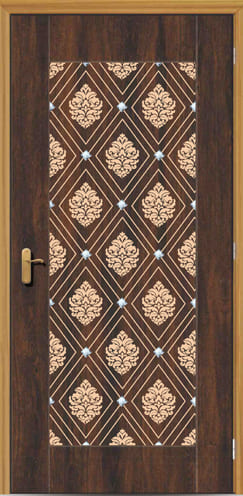

desgn-dr-3

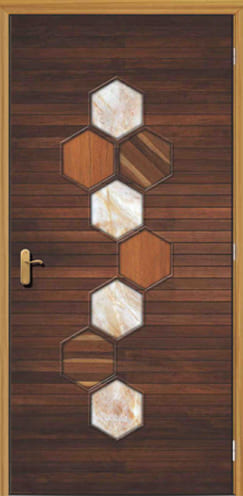

desgn-dr-2

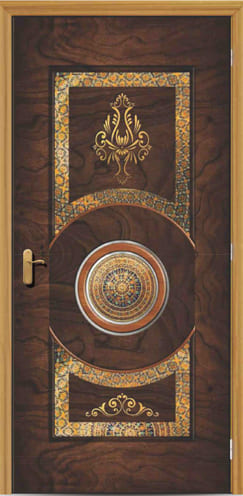

desgn-dr-1
