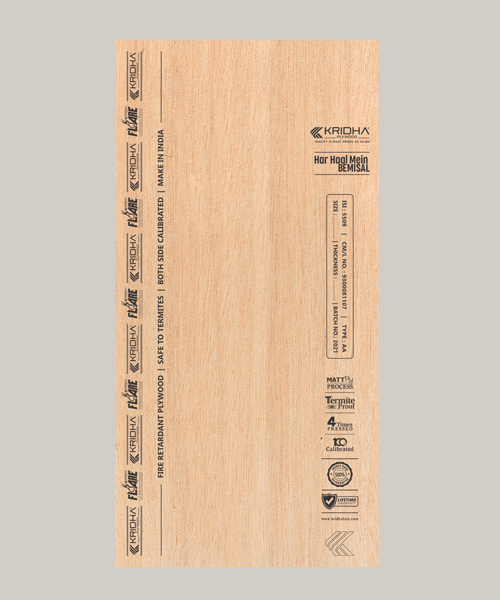

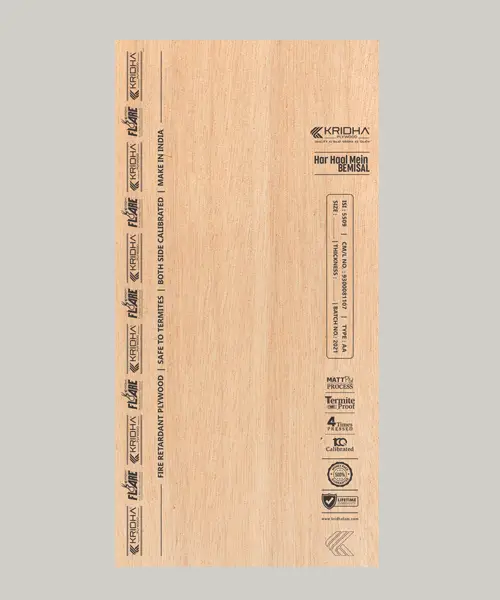

Fire Retardant Ply

KRIDHA Platinum Plywood is advisable to be used in public places, where the risk of fire has to be reduced. The areas such as in kitchen woodwork of large restaurants, interior woodwork public auditoriums, theatres and banquet halls KRIDHA Platinum FR Plywood is very suitable for every application in premium homes and villas as it confirms to all requisites of IS 710 and 18:5509. It can be used in railway.

Compartments of railway trains or other public transport or station facilities. KRIDHA Platinum FR Plywood is the most suitable plywood panel for high rise commercial buildings as this will prevent the occupants from fire and fumes for an extended period of time to provide enough escape time.

KRIDHA Platinum FIRE RETARDANT PLYWOOD is manufactured as per IS:5509 specifications that ensures the rate of burning of the plywood extended beyond 20 minutes. The time taken for flames to penetrate in KRIDHA Platinum fire retardant Plywood is beyond 30 minutes

FIRE RETARDANT TECHNICAL SPECIFICATIONS (IS:5509:2010)
	Test	ISI Requirements	Observed Values
1	Length	2440 + 60	2442mm
2	Width	1220 + 30	1222mm
3	Thickness	12mm plus/minus 5%	11.80mm
4	Squareness	2mm/1000mm	0.95mm
5	Edge straightness	2mm/1000mm	0.50mm
6	Workmanship & finish	As per clause 9.1 to 9.2	Satisfactory
	Physical properties
7	Density	0.60-0.65	0.64
8	Moisture contents	5-20%	10.25%
9	Water resistance test Cyclic test 8 hours 16 hours Boiling - drying 3 Cycles	Pass standard	Excellent
10	Mycological Test	Pass standard	Excellent
11	Static bending strength Along the grain M.O.E Across the grain M.O.E Along the grain M.O.R. Across the grain M.O.R	Avg. 5000N/mm² Ind. 4500N / m * m ^ 2 Avg. 2500N/mm² Ind. 2200N / m * m ^ 2 Avg. - 40 Ind. 36 Avg. - 20 Ind. 18	5850N / m * m ^ 2 4020N / m * m ^ 2 3480N / m * m ^ 2 2855N / m * m ^ 2 47.8N / m * m ^ 2 36.4N / m * m ^ 2 27.25N / m * m ^ 2 20.35N / m * m ^ 2
	FIRE RETARDANT TESTS IS: 5509: 2000
12	Flammability	30 Min.	35 Min.
13	Flame penetration	30 Min.	33 Min.
14	Rate of burning	20 Min. (Wt. loss 30 to 70%)	28 Min.

PROTECTION TIME : 40 min, 60 min,120 min.

RESISTANCE: It resists Spark and Ignite without any penetration. It offers 30% lesser smoke generation with extended flame penetration time. It offers very slow burning, having a decreased tendency of the fire to spread over the surface of the plywood.

SIZES : 8×4, 7×4

THICKNESS : 6mm, 9mm, 12mm. 16mm, 19mm, 25mm.

USP :

Lesser tendency of spark and ignite
Slow burning
Decreased chances of fire to spread over the surface of the plywood
Low flammability and lesser smoke generation
Higher flame penetration time
Specially formulated fireproofing chemicals infusion
High density
