Gold 303

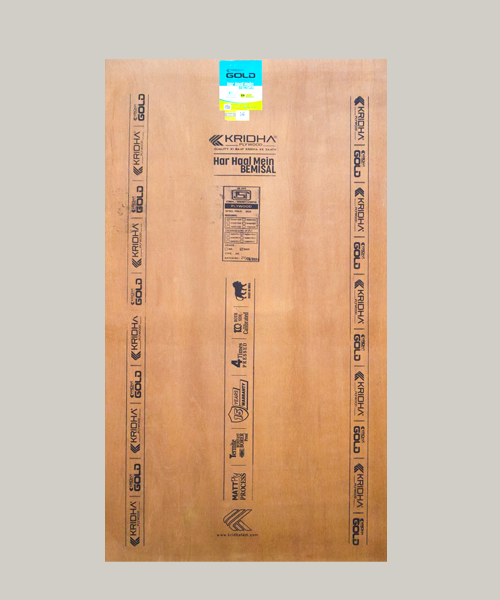

Made with high grade Treated and 8x4ift wood veneers from matured plantation timber of Eucalyptus and Poplar, each panel is made with extreme precision and care. KRIDHA GOLD BWR Grade Plywood is four times pressed at 130°C and extreme pressure to compress the veneer resin pack to obtain superior quality plywood. The 4Times pressed technology act as catalyst to enhance its strength The bonding process is done using highly viscous 54% solid content Melamine fortified resin which keeps its layers strongly bonded for longer time. To ensure maximum protection Is treated with unique and specially formulated chemicals to protect every inch from Termite and Borer KRIDHA GOLD BWR Grade Plywood is both side calibrated plywood. It is dimensionally stable and amazingly durable and ensures satisfaction for the entire woodworking need according to the designers, carpenters and the homeowners.
BWR PLYWOOD TECHNICAL SPECIFICATIONS (IS:303:2010) |
|||
Test | ISI Requirements | Observed Values | |
1 | Grade | BWR, MR | BWR |
2 | Moisture Content | 5-15% | 7% |
3 | Density | 0.65 to 0.70 gm/cm³ | 0.70 gm/cm³ |
4 | Resistance to Water (3 cycles of hr Boiling & 16 hr Drying at 650C)- adhesion to plies | Min pass | Excellent |
5 | Resistance to Micro Organism- Adhesion to plies | Min pass | Excellent |
A |
Modulus of Elasticity - Along the Grain - Across the Grain |
- Avg. Min 5000 N/mm² - Avg. Min 2500 N/mm² |
- 7500 N/mm² - 4000 N/mm² |
B |
Modulus of Rupture - Along the Grain - Across the Grain |
Avg. Min 40 N/mm² Avg. Min 20 N/mm² |
60 N/mm² 35 N/mm² |
6 |
Tensile Strength - Along the Grain - Across the Grain - Sum of Tensile Strength |
Avg. Min 42.00 N/mm² Avg. Min 25.00 N/mm² Avg. Min 84.50 N/mm² |
52 N/mm² 38 N/mm² 90 N/mm² |
SIZES: 8×4, 7×4, 8×3,7×3, 6×4, 6×3
THICKNESS: 4mm, 5mm, 9mm, 12mm 16mm, 18mm,25mm
CERTIFICATIONS : IS 303, ISO 9001:2015
USP :
- Made with MATT ply
- Made with 8x4ft core and panel
- Manufactured Using Selected Eco-friendly Timber
- Exceeding performance compared to other MR plywood brands
- Optimum Strength and Durability, best suited for commercial interior uses
